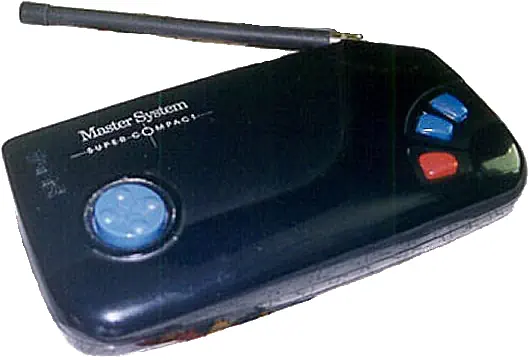

Sega Master System Compact
The Sega Master System had continued success in Brazil, while it was in decline in Europe and North America. The Tectoy company from Brazil produced portable Sega Master systems, of which the Master System Super Compact is one.
The system is a handheld version of the Master System, and the cartridge is inserted into a cartridge slot on the backside of the system. The unit can be powered by an adapter or by batteries, and there is a thumbpad controller right on the device itself. Additionally there is also a controller port so the user could plug in a regular Sega controller.
The unit has a Mark III Telecon pack built-in which allows it to broadcast an RF signal directly to the Television, so no wire was needed to play the games. However there was a lot of interference if the player was too far from the TV, or from other devices. Additionally the console could be plutted into the tv using a cable.
VRAM: 16kB Sound Chip SN76489 PSG Sound PSG: 3 Square waves, 1 noise generator
OPL2 FM Synthesizer Display Chip Yamaha YM2602B VDP Display 256x192 in 32 Colors Best Color 32 Colors out of 64 Graphics 256x192 Sprites 32 sprites simultanuously in 16 colors. Storage ROM Cartridges Original Price ¥15,000
