MSX 2

Hitachi MB-H70 (1986)

►

◄ Back to Computers

msx_mbh70

Ebay

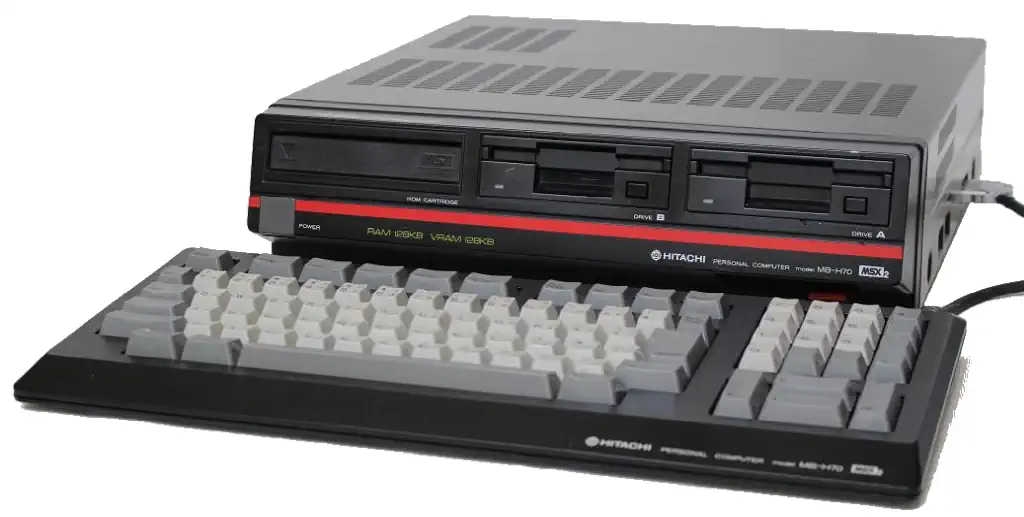

The Hitachi MB-H70 MSX Computer

Technical Details✨

Released

1986

Country

Japan

Brand

Hitachi

Type

MSX 2

Name

Hitachi MB-H70

CPU Class

Z80

CPU

Zilog Z80A @3.58MHz

Memory

RAM: 128kB
VRAM: 128kB

Sound Chip

Yamaha YM2149F Programmable Sound Generator

Sound

3 wave channels + white noise

Display Chip

Yamaha V9938 VDP

Display

All MSX-1 modes
256x212 16 color
512x212 4 color
512x212 2 color
256x212 256 color

Best Text

80x24

Best Color

256 simultaneous
or 16 out of 512 colors

Graphics

512x424 interlaced

Sprites

16 colors out of 512
16x16
8/scanline
64 total

System OS

MSX 2 BIOS / MSX 2 BASIC

Storage

External Tape
ROM cartridges

Original Price

¥138
000
