MSX 1

Hitachi MB-H50 (1986)

►

◄ Back to Computers

msx_mbh50

Ebay

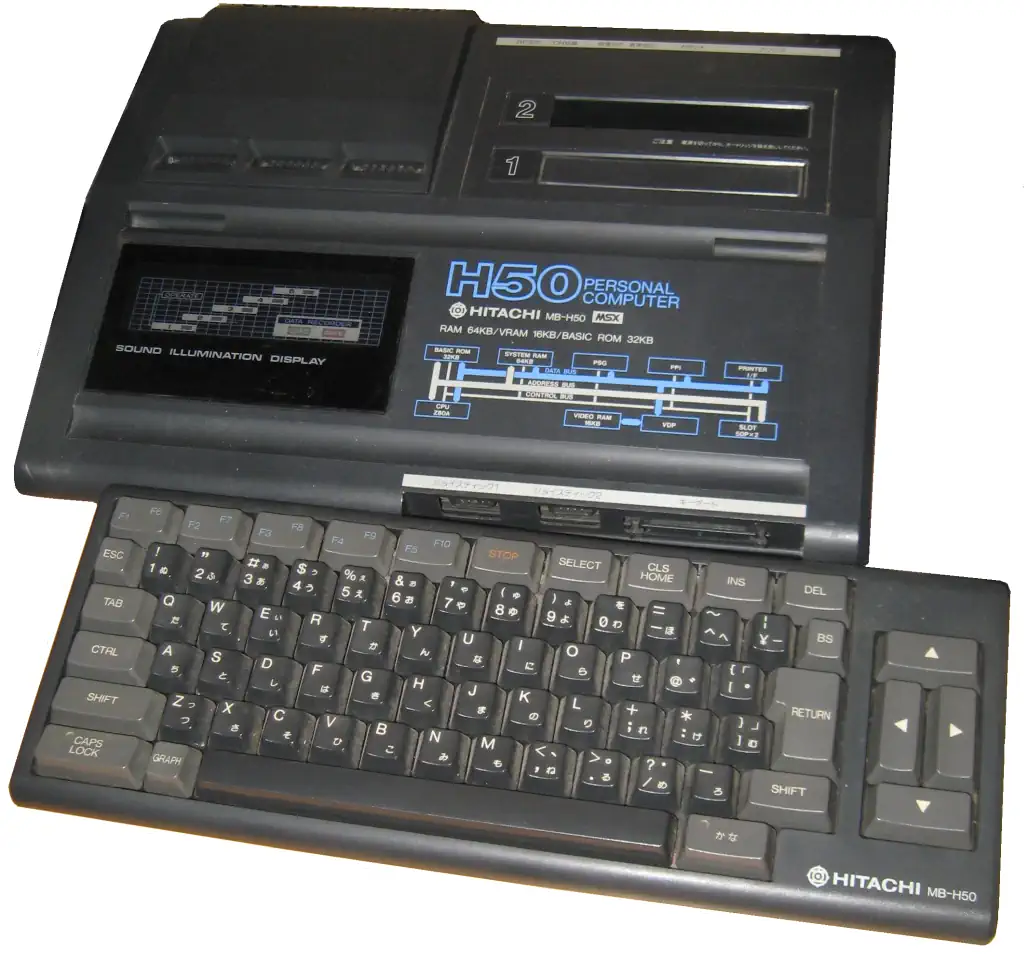

The Hitachi MB-H50 MSX Computer

Technical Details✨

Released

1986

Country

Japan

Brand

Hitachi

Type

MSX 1

Name

Hitachi MB-H50

CPU Class

Z80

CPU

Zilog Z80A @3.58MHz

Memory

RAM: 64kB
VRAM: 16kB

Sound Chip

General Instruments AY-3-8910 Programmable Sound Generator

Sound

3 wave channels + white noise

Display Chip

TMS9129 VDP Compatible

Display

40x24 text
32x24 16 color text
pattern based
256x192 16 color
2 color per 8 pix.

Best Text

40x24

Best Color

16 colors (2 per 8 pixels)

Graphics

256x192 in 16 colors

Sprites

1 color
16x16
4/scanline
32 total

System OS

MSX 1 BIOS / MSX BASIC

Storage

External Tape
ROM cartridges

Original Price

¥29
800
