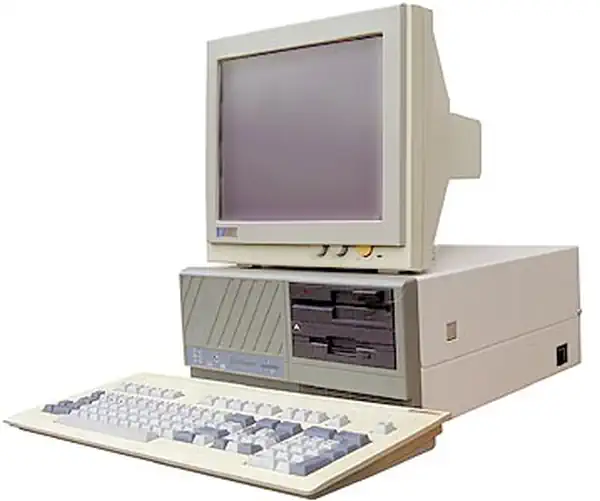

The Elan Challenger by Leanord
The Elan Challanger was an IBM-AT clone produced by Leanord in 1986. The Elan team developed its own BIOS and all the electronics for the system. The team started in 1985 with development on the 8088, and then the 80286 processor.
The computer is a standard AT compatible system. The system had a unique feature that allowed the CPU speed to switch between 8.77MHz and a Turbo 12MHz mode by using an external DOS command. The machine was mostly limited to the French market, with the government and the French educational system the main buyers.
Graphics capabilities of the machine varied by the Video Card that the customer bought for the system. It supported CGA, Hercules and a high-color EGA video card.
Leanord Company



CPU View - Intel 80286
The Intel 80286 is a 16-bit microprocessor introduced in 1982. It was the first 80x86 processor with a separate, address and data bus, the first to introduce protected virtual address mode or protected mode, as well as built in memory management abilities. The 80286 is instruction compatible with the 8086 and the 8088 processors. It contained all the 8086, the 80186 instructions, and also new instructions to handle protected mode.
Source: WikiPedia - Intel 80286
RAM max: 640kB Sound Chip none Sound PC Beeper Display Chip CGA or Hercules Display 80x24 text
640x200 (CGA)
720x348 (Hercules) Best Text 80x25 Best Color 16 Colors (CGA) Graphics 720x348 (Hercules) Sprites none System OS MS-DOS 3.1 Storage 5.25 1.2MB FDD
20MB HDD
