Prologica CP 300  (1983)
◄ Back to Computers

Prologica CP-300

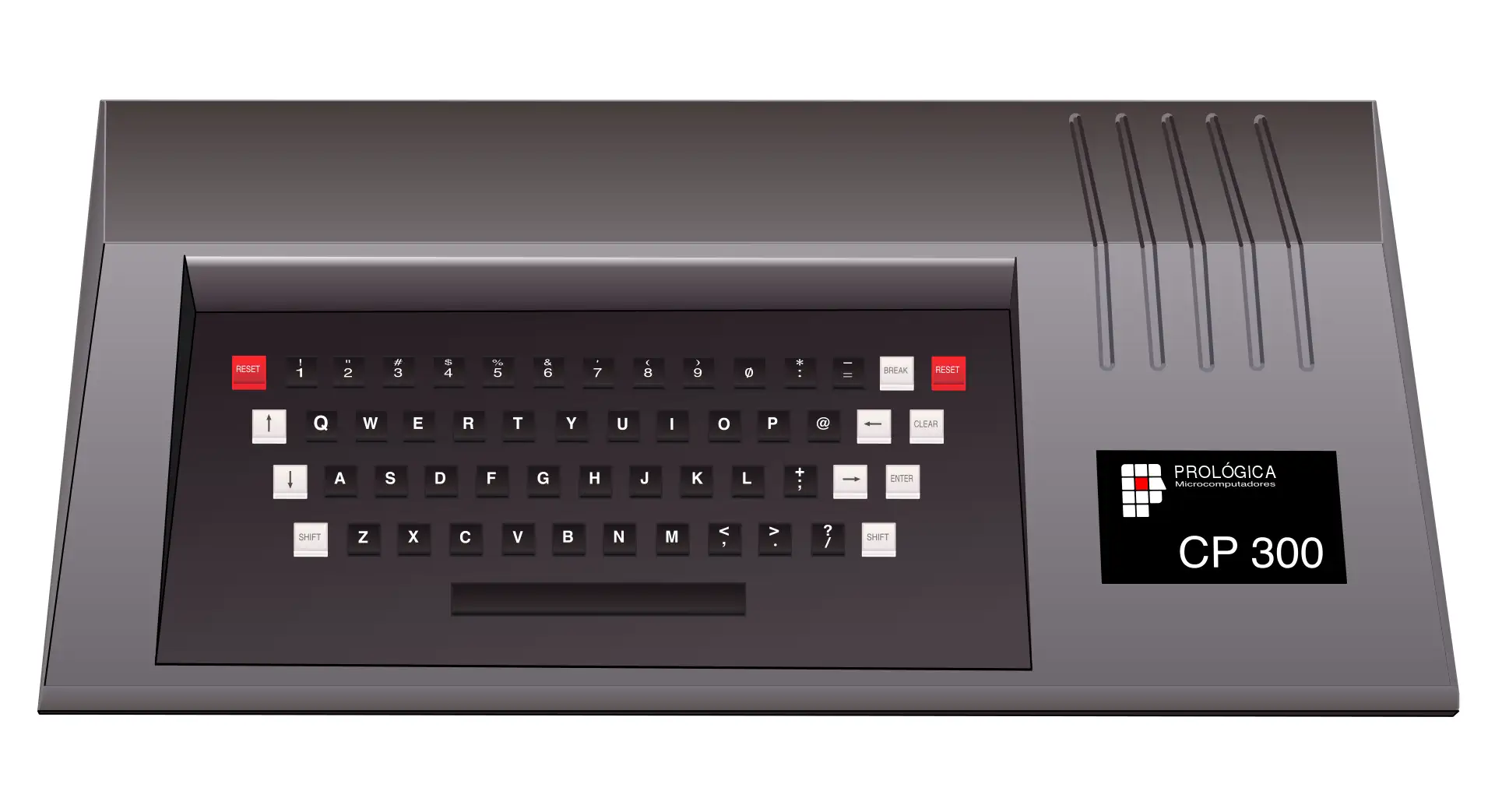

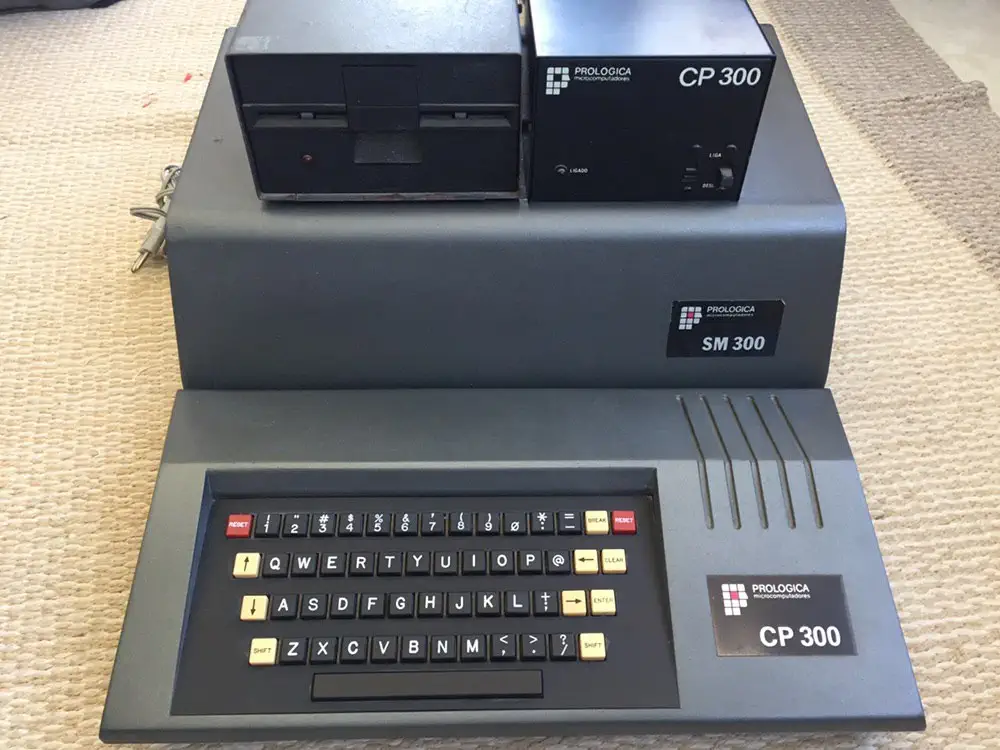

The CP 300 was a Brazilian home computer produced by the Prologica company in 1983. It was compatible with the TRS-80 Model III, and was produced as a cheaper alternative to the CP 500. The keyboard had small gum-like keys and the power supply was external. The machine had 64 KByte of memory, an RF output, a video output and a cassestte interface. The computer could support up to four external 5.25" floppy disk drives.

CPU - The Zilog Z80

The Z80 quickly became popular in the personal computer market, with many early personal computers, such as the TRS-80 and Sinclair ZX80, using the Z80 as their central processing unit (CPU). It was also widely used in home computers, such as the MSX range, SORD, and the Amstrad CPC, as well as in many arcade games. Additionally, it was also used in other applications such as industrial control systems, and embedded systems. The Z80 was widely used until the mid-1980s, when it was gradually replaced by newer microprocessors such as the Intel 80286 and the Motorola 68000.

The Z80 microprocessor was developed by Zilog, a company founded by Federico Faggin in 1974. The Z80 was released in July 1976, as a successor to the Intel 8080. It was designed to be fully compatible with the 8080, but also included new features such as an improved instruction set, more powerful interrupts, and a more sophisticated memory management system.

Originally the Z80 was intended for use in embedded systems, just as the 8080 CPU. But the combination of compatibility, superior performance to other CPUs of the era, and the affordability led to a widespread use in arcade video game systems, and later in home computers such as the Osborne 1, TRS-80, ColecoVision, ZX Spectrum, MSX, Sega's Master System and many more. The Z-80 ran the original Pac-Man arcade cabinet. The Z-80 was used even in the Game Gear (1990s), and the TI-81 and succeeding graphic calculators.

The Z-80 remained in production until June of 2024, 48 years after its original release. Zilog replaced the processor with its successor the eZ80, an 8-bit microprocessor that features expanded memory addressing up to 16 megabytes, and running up to 50MHz, comparable to a Z80 clocked at 150MHz.

Technical Details
Released
1983
Country
Brasil
Brand
Prologica
Type
Prologica Clones
Name
Prologica CP 300
Clone Of
CPU Class
Z80
CPU
Z80 @2MHz
Memory
RAM: 64kB
ROM: 16kB
Sound Chip
none
Sound
Internal Beeper
Display Chip
none
Display
64x16
32x16 text
128x48 Semi-Graphics
Best Text
64x16
Best Color
none
Graphics
128x48 semi graphics
Sprites
no sprites
System OS

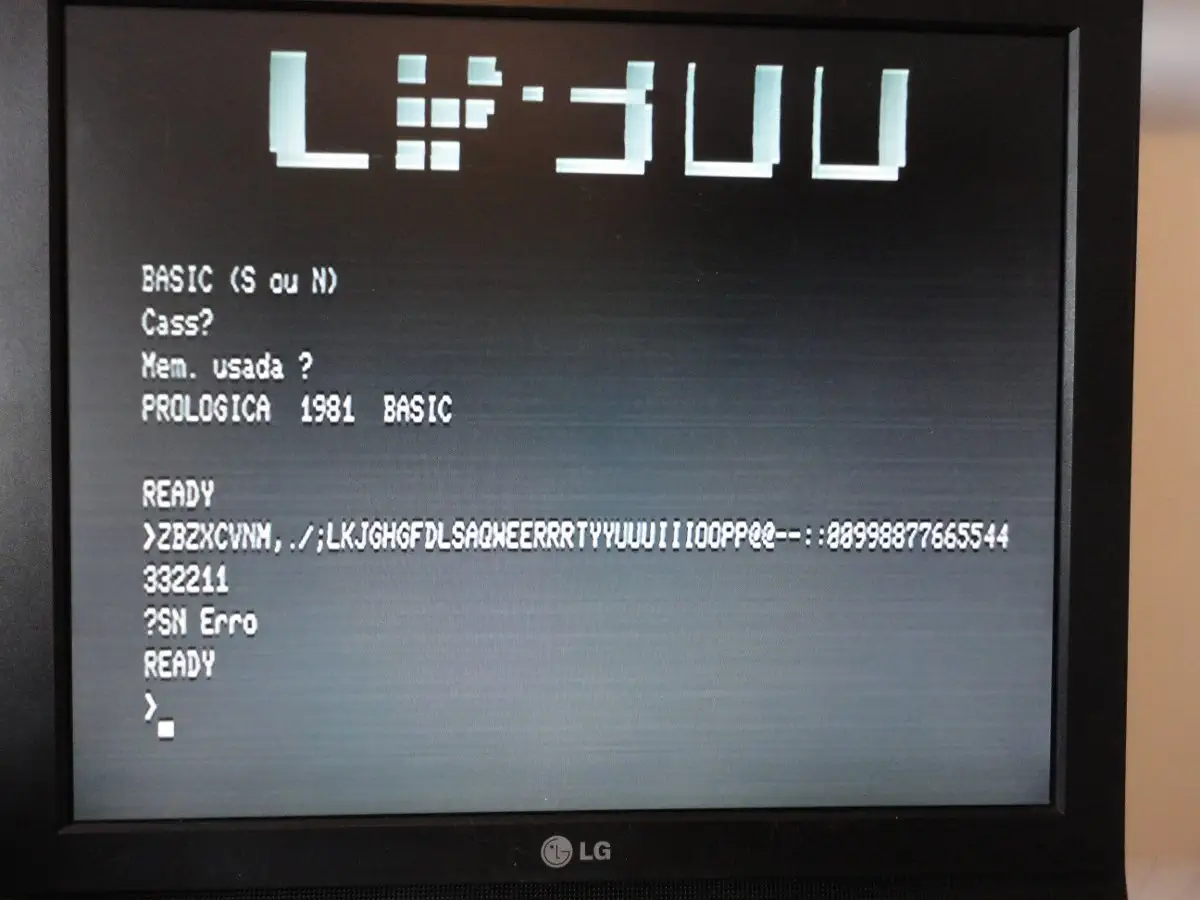

TRS BASIC Level II
Storage
External Tape
ROM cartridges
