Prologica Sistema 700  (1981)
◄ Back to Computers

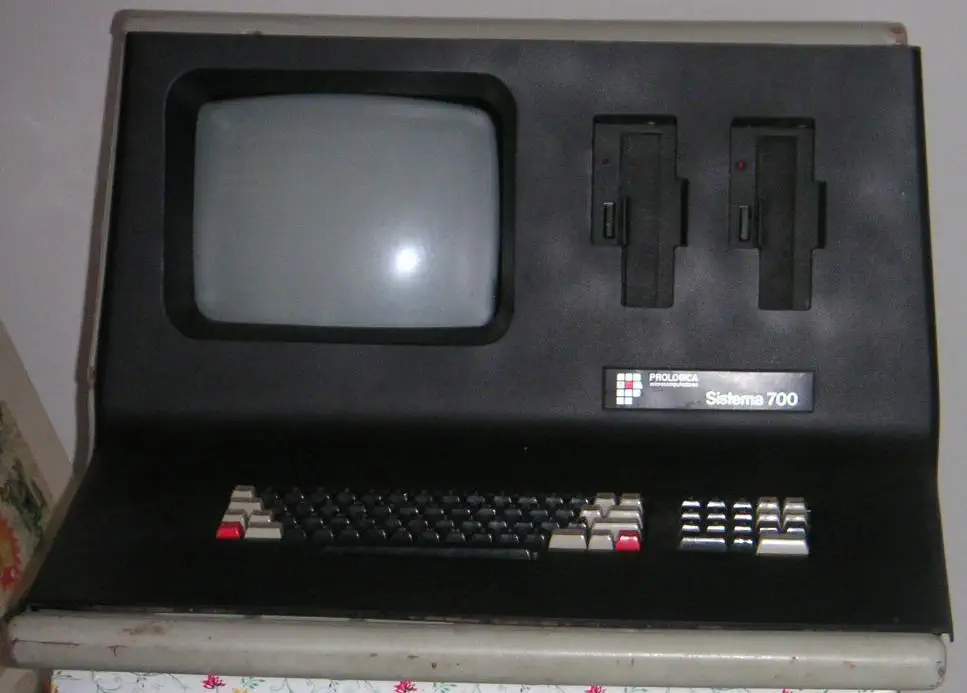

Prologica Sistema 700

The Prologica Sistema 700 was introduced in 1981 and manufactured until 1985. It was based on the Zilog Z80A architecture, came with 64KByte of RAM and two 5.25" 320KByte floppy disk drives.

The Operating system of the Sistema 700 was DOS-700, this was a CP/M-80 version, adapted by the Prologica software engineering department to run on the Sistema 700. This OS was highly compatible with CP/M and applications like Fortran, BASIC compliler, Algol, Pascal, WOrdStar, CalcStar, DataStar and dBase II all ran on this machine without any problem.

CPU - The Zilog Z80

The Z80 quickly became popular in the personal computer market, with many early personal computers, such as the TRS-80 and Sinclair ZX80, using the Z80 as their central processing unit (CPU). It was also widely used in home computers, such as the MSX range, SORD, and the Amstrad CPC, as well as in many arcade games. Additionally, it was also used in other applications such as industrial control systems, and embedded systems. The Z80 was widely used until the mid-1980s, when it was gradually replaced by newer microprocessors such as the Intel 80286 and the Motorola 68000.

The Z80 microprocessor was developed by Zilog, a company founded by Federico Faggin in 1974. The Z80 was released in July 1976, as a successor to the Intel 8080. It was designed to be fully compatible with the 8080, but also included new features such as an improved instruction set, more powerful interrupts, and a more sophisticated memory management system.

Originally the Z80 was intended for use in embedded systems, just as the 8080 CPU. But the combination of compatibility, superior performance to other CPUs of the era, and the affordability led to a widespread use in arcade video game systems, and later in home computers such as the Osborne 1, TRS-80, ColecoVision, ZX Spectrum, MSX, Sega's Master System and many more. The Z-80 ran the original Pac-Man arcade cabinet. The Z-80 was used even in the Game Gear (1990s), and the TI-81 and succeeding graphic calculators.

The Z-80 remained in production until June of 2024, 48 years after its original release. Zilog replaced the processor with its successor the eZ80, an 8-bit microprocessor that features expanded memory addressing up to 16 megabytes, and running up to 50MHz, comparable to a Z80 clocked at 150MHz.

Technical Details
Released
1981
Country
Brasil
Brand
Prologica
Type
Prologica Sistema
Name
Prologica Sistema 700
CPU Class
Z80
CPU
Zilog Z80A @4MHz
Memory
RAM: 64kB
Sound Chip
none
Sound
Beeper
Display Chip
none
Display
80x24 text
Best Text
80x24
Best Color
none
Graphics
Text Only
Sprites
no sprites
System OS
DOS-700
