Didaktik
Didaktik Alfa
didaktik_alpha

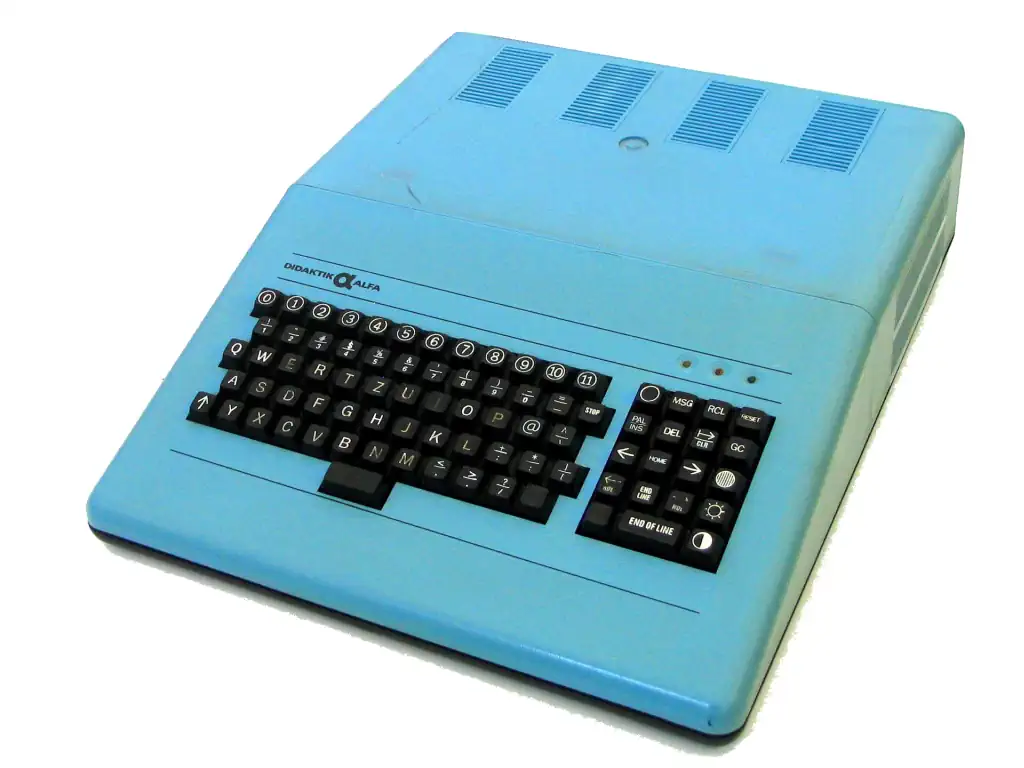

The Didaktik Alfa, produced in 1986 in what was then Czechoslovakia, was a PDM 85 clone. There were two versions of the alpha, the Alfa-1, which was a clone of de PMD 85-1, and the Alfa-2, which was a clone of the PMD 85-2.

Both models had an Intel 8080 CPU running at 2.048MHz, 48kByte of RAM, 8kByte of ROM for the built in BASIC, and could display a resolution up to 288x256 pixels in 4 different colors. The computer had a monitor video output, but no TV output.

CPU - The Intel 8080

The Intel 8080 was an 8-bit microprocessor that was designed and manufactured by Intel Corporation. It was the first CPU in the x80 series, and was released in April 1974. The 8080 had a clock speed of 2 MHz and was capable of addressing 64 KB of memory. It had a total of 45 instructions and 7 registers, including the Accumulator, the Flags register and the stack pointer.

One of the key features of the 8080 was its ability to directly execute instructions for input/output operations, allowing for more efficient communication with peripheral devices such as keyboard, display, and storage. This made the 8080 a popular choice for early personal computers like the Altair 8800, the IMSAI 8080 and the first IBM PC.

Additionally, the 8080's architecture was widely adopted in industrial control systems and arcade games. It was also used as the basis for other microprocessors such as the Zilog Z80 which was widely used in home computers of the 1980s.

The 8080 was succeeded by the 8085 microprocessor in 1976, which was similar to the 8080 but had an additional instruction set and an integrated clock generator. The 8080 and the 8085 together with their variants and clones played an important role in the development of the microcomputer industry and the personal computer revolution.

Technical Details
Released 1986
Country Russia
Brand Didaktik
Type Didaktik
Name Didaktik Alfa
CPU Class 8080
CPU Intel 8080 @2.048MHz
Memory RAM: 48kB
ROM: 8kB
Sound Chip none
Sound 1-bit sound
Display Chip Soviet Angstrem
Display 288x256 4 color
Best Color 4 colors
Graphics 288x256 4 color
Sprites none
System OS BASIC
External Links 🌐
Intel 8080 CPU
Wikipedia page for the Intel 8080 processor.
Intel 8080 Instruction Set
An overview of the intel 8080 instruction set.
