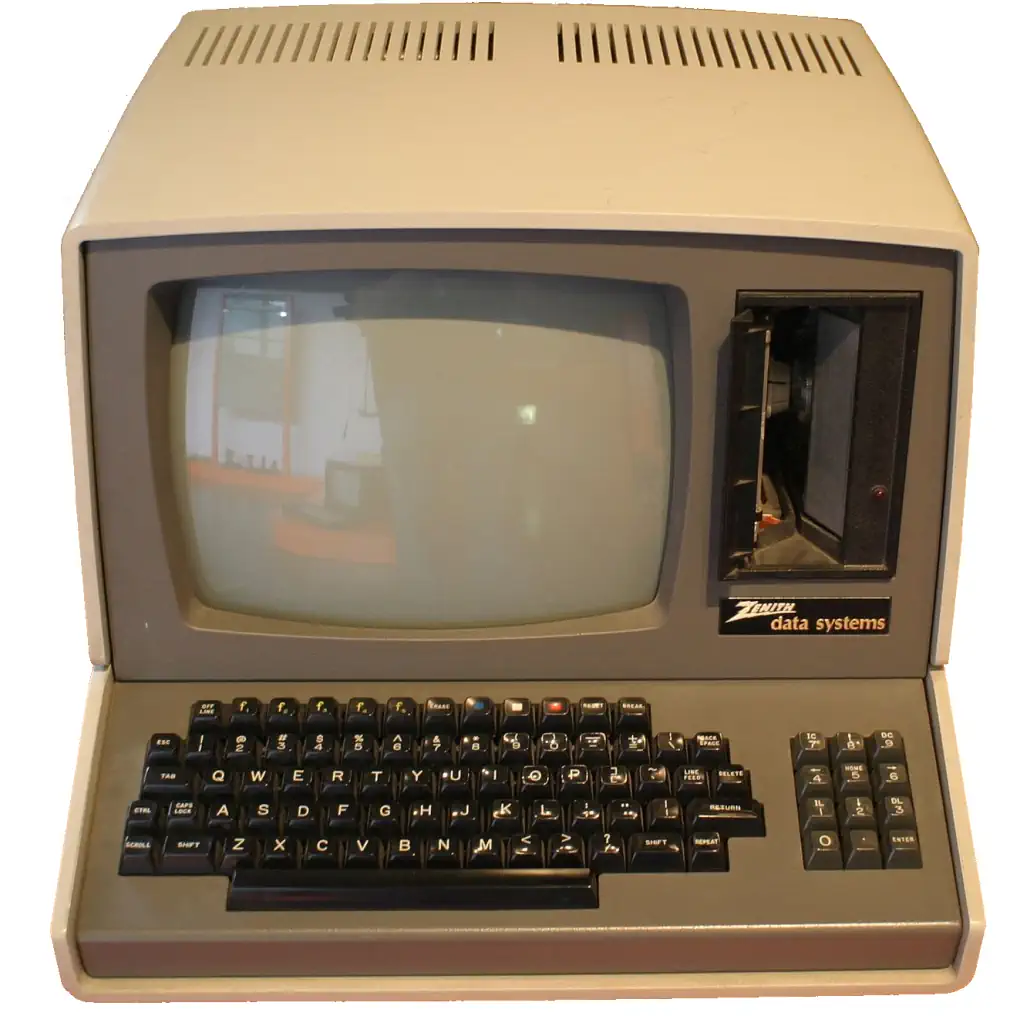

The Zenith Z-89, originally introduced by Heathkit as the H89 in 1979 and later manufactured by Zenith Data Systems, is a significant example of early all-in-one personal computing architecture. Unlike many contemporary systems that required separate terminals, the Z-89 integrated the computer logic, a 12-inch monochrome CRT display, a professional-grade keyboard, and a floppy disk drive into a single enclosure. The design utilizes a dual-processor architecture. One microprocessor is dedicated to general computing functions, while a secondary, independent microprocessor manages terminal operations. This segregation of duties allowed the system to function effectively both as a standalone computer and as a terminal.

At the core of the Z-89's computing capability is the Zilog Z80 microprocessor, operating at a clock speed of 2.048 MHz. The Z80 was a highly influential 8-bit CPU, designed to be software-compatible with the Intel 8080 while offering enhanced performance and a more robust instruction set. Key architectural improvements included an alternate register set for faster interrupt handling, two 16-bit index registers (IX and IY) for base+offset addressing, and built-in DRAM refresh circuitry. These features made the Z80 a powerful choice for the era. Standard RAM configuration typically started at 16 KB or 48 KB on the main board, which could be expanded to a maximum of 64 KB using an optional memory card, the maximum addressable space under the CP/M operating system.

The standard storage mechanism for the Z-89 is a built-in 5.25-inch floppy disk drive, positioned to the right of the CRT. Early models utilized hard-sectored floppy disks with a capacity of 100 KB. The system's expandability is supported by two internal card cages, each accommodating up to three Benton Harbor Bus-compatible expansion cards. This bus allowed for the addition of various upgrades, including extra RAM, multi-serial cards for additional RS-232 ports, and upgraded disk controllers. The availability of soft-sectored disk controllers later enabled the use of double-sided, double-density drives, increasing storage capacity to 640 KB per diskette. External drive options were also extensive, supporting additional 5.25-inch drives, 8-inch floppy drives using standard IBM 3740 disks (1.2 MB capacity), and even a 10 MB Winchester hard drive.

In terms of software and display capabilities, the Z-89 is highly versatile. It supports several operating systems, most notably CP/M (Control Program for Microcomputers) and Heathkit's proprietary HDOS (Heathkit Disk Operating System). The built-in 12-inch CRT displays text in an 80-column by 25-line format. While primarily a text-based machine, it supports 33 block/box drawing characters and reverse video for basic graphical layouts. The integration of the American Megatrends Incorporated (AMI) Phoenix 1 BIOS firmware provided reliable system initialization, representing an early instance of BIOS standardization. This combination of a robust hardware architecture and flexible software support made the Z-89 a capable machine for business and professional applications.

The Z80 quickly became popular in the personal computer market, with many early personal computers, such as the TRS-80 and Sinclair ZX80, using the Z80 as their central processing unit (CPU). It was also widely used in home computers, such as the MSX range, SORD, and the Amstrad CPC, as well as in many arcade games. Additionally, it was also used in other applications such as industrial control systems, and embedded systems. The Z80 was widely used until the mid-1980s, when it was gradually replaced by newer microprocessors such as the Intel 80286 and the Motorola 68000.

The Z80 microprocessor was developed by Zilog, a company founded by Federico Faggin in 1974. The Z80 was released in July 1976, as a successor to the Intel 8080. It was designed to be fully compatible with the 8080, but also included new features such as an improved instruction set, more powerful interrupts, and a more sophisticated memory management system.

Originally the Z80 was intended for use in embedded systems, just as the 8080 CPU. But the combination of compatibility, superior performance to other CPUs of the era, and the affordability led to a widespread use in arcade video game systems, and later in home computers such as the Osborne 1, TRS-80, ColecoVision, ZX Spectrum, MSX, Sega's Master System and many more. The Z-80 ran the original Pac-Man arcade cabinet. The Z-80 was used even in the Game Gear (1990s), and the TI-81 and succeeding graphic calculators.

The Z-80 remained in production until June of 2024, 48 years after its original release. Zilog replaced the processor with its successor the eZ80, an 8-bit microprocessor that features expanded memory addressing up to 16 megabytes, and running up to 50MHz, comparable to a Z80 clocked at 150MHz.

CP/M (Control Program for Microcomputers), created by Gary Kildall in 1974 for Intel 8080-based systems, was the first widely adopted microcomputer operating system to establish a standard software platform. At its core, CP/M was divided into three layers: the BIOS (Basic Input/Output System) for hardware-dependent routines, the BDOS (Basic Disk Operating System) for file and device abstractions, and the CCP (Console Command Processor) for the command-line interface. This modular design meant CP/M could be ported to a wide variety of 8-bit systems simply by rewriting the BIOS layer, while the BDOS and CCP remained binary-compatible. This allowed application developers to target a single OS API rather than custom hardware interfaces, which was a radical departure from the fragmented landscape of early microcomputers.

Memory management in CP/M was constrained by the 8080 and Z80’s 64 KB address space, so the operating system was designed to occupy only the top portion of memory. The BDOS and CCP were typically loaded into high memory, leaving a contiguous block of low memory available for transient programs (user applications). Applications were written to expect a fixed TPA (Transient Program Area), with the starting address varying slightly depending on how much memory was available after BIOS/BDOS were loaded. This simple scheme avoided the need for virtual memory or sophisticated protection mechanisms, but it limited multitasking: CP/M was strictly a single-tasking environment. Program overlays and clever memory swapping techniques were sometimes used by developers to fit larger applications into the available TPA, especially for compilers and database software.

Application support was the main driver of CP/M’s dominance. Its standardization around the BDOS interface meant that word processors, assemblers, compilers (notably for C, Pascal, and BASIC), and business applications could run on hundreds of different hardware platforms with minimal modification. Programs were distributed as .COM files—binary images loaded directly into the TPA without relocation—which simplified the loader at the cost of flexibility. Libraries like Digital Research’s PL/I subset and third-party toolchains extended CP/M into a development platform, while the vast ecosystem of utilities (from editors like ED to debuggers and communications software) established it as the de facto operating system of the late 1970s and early 1980s microcomputing world. For retrocomputing enthusiasts, CP/M represents the moment when software compatibility, not just hardware, became the central value in the microcomputer marketplace.
