Super Cassette Vision  (1984)
◄ Back to Consoles

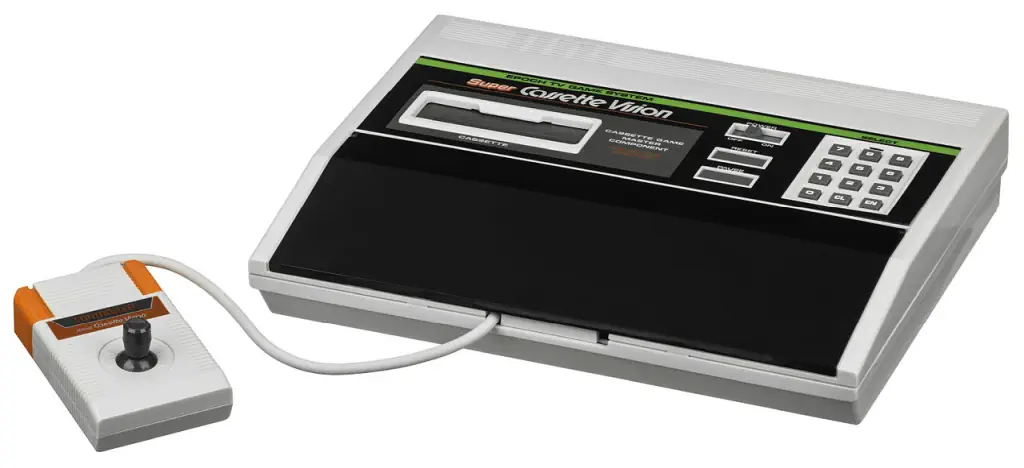

Super Cassette Vision

The Super Cassette Vision was released in Japan in 1984. Epoch's original Cassette Vision had steady sales and took over 70% of the Japanese home console market at the time, with around 400,000 units sold. However, the introduction of next-generation systems from Nintendo, Casio and Sega quickly pushed back the original Cassette Vision, leading Epoch to quickly develop a successor.

The Super Cassette Vision was released in 1984 at a cost of ¥14,800 yen and featured an 8-bit processor for better performance, and a new graphics chip for much better graphics. The machine was also released in France by ITMC under the Yeno brand. At least 16 games were brought over from Japan for a European release.

The system did not take off, and was unable to match the massive popularity of the Nintendo Famicom, leading Epoch to drop out of the console market by 1987.

Technical Details
Released
1984
Country
Japan
Brand
Epoch
Type
Cassette Vision
Name
Super Cassette Vision
CPU Class
CUSTOM
CPU
NEC µPD7801G @4MHz
Memory
RAM: 128 bytes
ROM: 4kB
VRAM: 4kB
128B CPU RAM
Sound Chip
µPD1771C @ 6 MHz
Sound
1 channel
Display Chip
EPOCH TV-1 @14MHz
Display
309x246 in 16 colors
Best Text
n/a
Best Color
16 colors
Graphics
309x246
Sprites
128 sprites
Storage
ROM cartridge
Original Price
¥14
800
