Rockwell AIM
Rockwell AIM 65/40
►
aim6540

Rockwell AIM-65/40

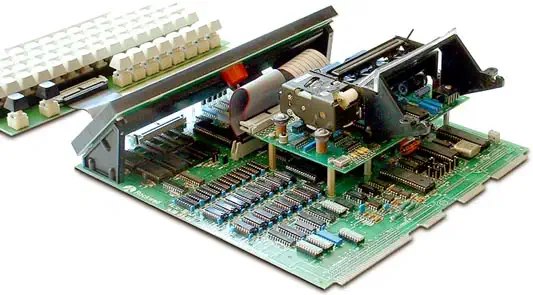

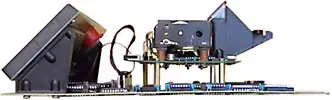

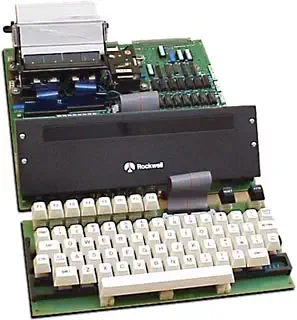

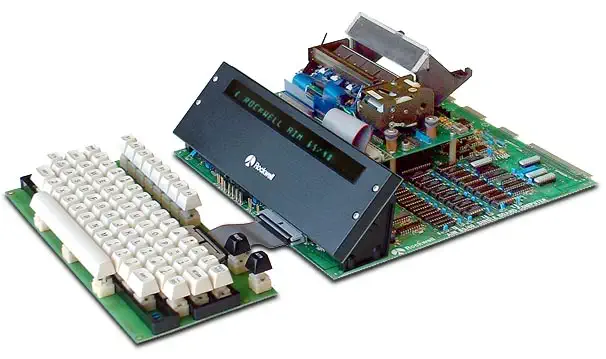

In 1981 Rockwell released an improved model of it's popular AIM-65 computer, the AIM-65/40. The Rockwell AIM-65/40 is a single board computer that features system address of up to 128KByte, with 48KByte onboard memory. It is built around the Rockwell R6502 processor (MOS 6502 compatible) and a full ASCII keyboard. The machine was also equiped with an RS-232C interface, two user-definable 8-bit parallel ports with handshake, two 16-bit timer/counters, and an 8-bit serial shift register. Three additional 8-bit parallel ports were directly programmable to privide TTL level I/O, or interfaces to keybaords, displays and/or printers.

Rockwell AIM-65

https://en.wikipedia.org/wiki/AIM-65
Technical Details✨
Released 1981 Country United States Brand Rockwell Type Rockwell AIM Name Rockwell AIM 65/40 CPU Class 650x CPU Rockwell 6502 @1MHz Memory RAM: 32kB Sound Chip none Sound none Display Chip none Display 40 character fluorescent display Best Text 40x1 Best Color none Graphics Text Only Sprites none System OS Monitor System Original Price $700
Related Systems 💾
Rockwell AIM

Rockwell AIM  65 (1978)
⭐
Rockwell AIM  65/40 (1981)
External Links 🌐
Rockwell AIM-65
Collection of information on the AIM 65 collected by Hans Otten
